Recommended Resources:

• Tool: ADB
• Tool: Android Studio
• Post EN: Android reversing
• Tool: Android Reversing Tool list

Structure of an Android App Binary (.apk)

An .apk file is an Android binary. APK stands for Android Package Kit (also Android Application Package) and is the file format Android uses to distribute and install Android apps. It contains all the elements an app needs to function correctly on your device.

About .apk files

Android applications are bundled in a single file type called APK (Android Package Kit). They come with an .apk suffix but are just ZIP files. If you modify the suffix, you can extract their contents. To be more precise, an APK is a type of JAR (Java ARchive), which is a type of ZIP.

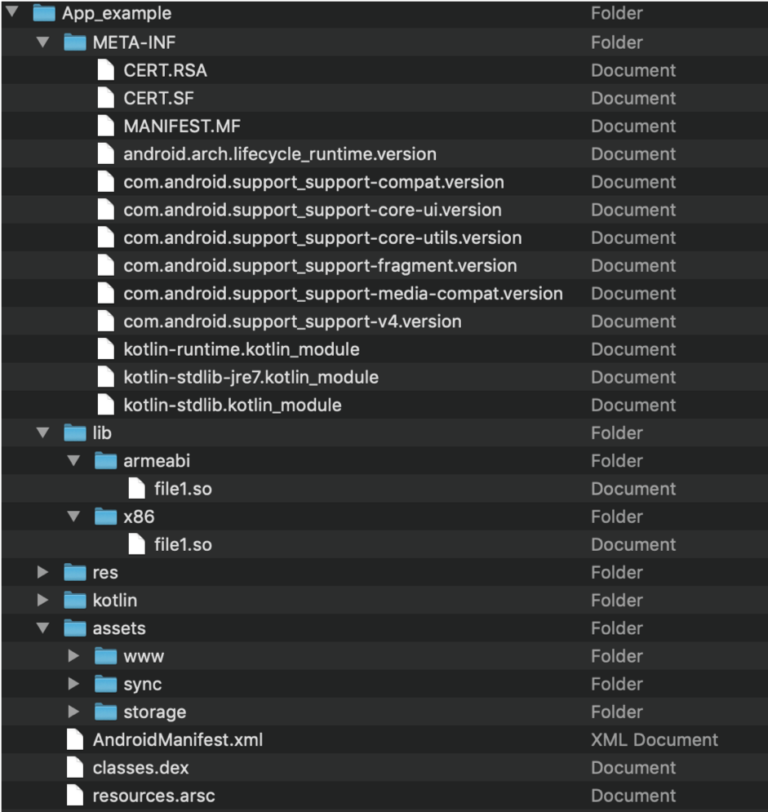

The contents of the .apk file always fit a specific structure:

• META-INF – This folder contains verification information and is generated when “signing” the application. It is basically the fingerprint information for every file contained within the APK, meaning that any modification to the APK (even replacing an icon) requires resigning the APK. Otherwise, the OS will reject the installation. When signing applications, these files are updated.
  • The contents of this folder are:
    • CERT.SF (May have another file name with the same suffix) – List of all files with their SHA-1 hashes.
    • CERT.RSA (May have another file name with the same suffix) – Contains signed content of CERT.RF and is used to verify app integrity with the public key.
    • MANIFEST.MF – Contains the SHA-256-Digest of all the files in the apk. It is used to verify the validity of each file in the zip, ensuring that altering this file or any other files in the zip container will revoke the signature and make it invalid.
• assets – The developer controls application resources in the folder hierarchy. For example, if your application displays a video or comes with some document templates, they will be stored in the assets folder. In addition, certain frameworks also use the assets folder to store code and data. For example:
  • Cordova or React-native applications store their Javascript code in the assets folder.
  • Maui, Xamarin applications store DLL files in the assemblies folder, which acts in the same manner.
• AndroidManifest.xml – A required file that describes the application. The manifest contains key information elements about the application. Here’s a partial list of them:
  • Application’s package name.
  • All the application’s components, such as activities and resources.
  • The permissions this application requires to run and the permissions required to access this application’s information by other apps.
  • Compatibility features (e.g., minimum Android version and supported devices).
  • A complete specification can be found here.

In addition, as part of the fusion process, some assets may be added to store information related to Fusion and the selected policy.

• classes.dex – Google’s proprietary format for their version of the Java VM, contains all Java/Kotlin code compiled to their specific bytecode called Dalvik. APK files may contain more than one classes.dex file due to limitations of the DEX format. Additional files will be numbered (i.e., classes2.dex, classes3.dex and so forth).
• kotlin – This folder is present only if the application was written with Kotlin. It contains Kotlin-specific data. Depending on the selected Fusion policy, its content might change as part of the fusion process.
• lib – A folder that contains native libraries (machine code). Since Android is cross-platform, it contains a subfolder for each supported processor:
  • armabi – Binaries that support at least ARMv5TE, deprecated since ndkr16 (Dec. 2017) and removed in ndkr17 (Jun. 2018).
  • armeabi-v7a – Binaries supporting ARMv7.
  • arm64-v8a – Binaries supporting ARMv8.
  • x86 – Binaries supporting x86.
  • x86_64 – Binaries supporting x86-64.
  • mips – Binaries for MIPS, deprecated since ndkr17.
  • The presence or lack of a subfolder indicates the support (or lack thereof) for that platform. For example, if there’s an x86_64 subfolder, the application will be compatible with the Android emulator.

More info about supported ABI’s can be found here.

• res – A folder that contains resources (like assets) but with a pre-defined folder hierarchy that the developer can’t change. These files are used to provide alternatives for different screen orientations, OS versions, and multi-language support.
• resources.arsc – A file that contains information that links the code (classes.dex) to the resources (res). For example, the code might reference the text of a dialog, while the resources contain that text in all languages. The Android OS then chooses the correct language according to the device’s locale configuration.

JNI : The principle of dynamic registration

JNI allows us to provide a function mapping table and register it with the JVM, so that the JVM can use the function mapping table to call the corresponding function without having to look up the relevant function by function name.

static jstring nativeDynamicRegFromJni(JNIEnv *env, jobject obj)
{
    return (*env) -> NewStringUTF(env, "dynamic call suceed");
}

JNINativeMethod nativeMethod[] = dynamicRegFromJni;

JNIEXPORT jint JNICALL JNI_OnLoad(JavaVM *jvm, void *reserved)
{
    JNIEnv *env;

    jclass clz = (*env) -> FindClass(env, "com/example/helloWorld/MainActivity");

    (*env) -> RegisterNatives(env, clz, nativeMethod, sizeof(nativeMethod) / sizeof(nativeMethod[0]));

    return 0;
}

JNI_OnLoad()

When Java loads the JNI dynamic library via System.loadLibrary, it calls the JNI_OnLoad function.

C04 - 01 : Android Rev V01 (Easy–)

In this challenge, the goal is to reverse engineer an Android application that stores its password hardcoded in the main app. Right now, the secret data is quite easy to get, for now…

flag format is LRCTF{ascii}

C04-01: android01.apk

flag md5sum : f4ee1d60976b10a656727a97c6d2be0b

C04 - 02 : Android Rev V02 (Easy+)

We fired the old developer who stored a password in the source code like this. Now, the new developer has stored the password encrypted in a secure context!

flag format is LRCTF{ascii}

C04-02: android02.apk

flag md5sum : f4320c7baf988de61c6fe67dbe1b9aec

C04 - 03 : MobicrackNDK (Easy++)

This challenge come from past CTF

How does this calc work

No flag format, password is Ascii

C04-03 : MobicrackNDK
